Complete Thermo Vanquish HPLC + Exploris 240 Orbitrap LC-MS System
Condition: Excellent - Professional Service Complete
Status: Ready to Operate - Complete Turnkey LC-MS System
Seller: ScientiFIX LLC - Connecticut's Leading Independent Scientific Equipment Service Provider
Description
This fully serviced and integrated Thermo Vanquish HPLC + Exploris 240 Orbitrap LC-MS system is ready for immediate use in your laboratory. Our expert technicians have completely cleaned, inspected, and validated both instruments to meet OEM specifications. Simply connect your nitrogen source and power - you have a complete, validated LC-MS solution ready for high-resolution mass spectrometry analysis!
The system combines the robust performance of the Thermo Vanquish HPLC with the cutting-edge Exploris 240 Orbitrap mass spectrometer, delivering exceptional performance for both small and large molecule analysis with seamless integration and proven reliability.
Complete LC-MS System Includes

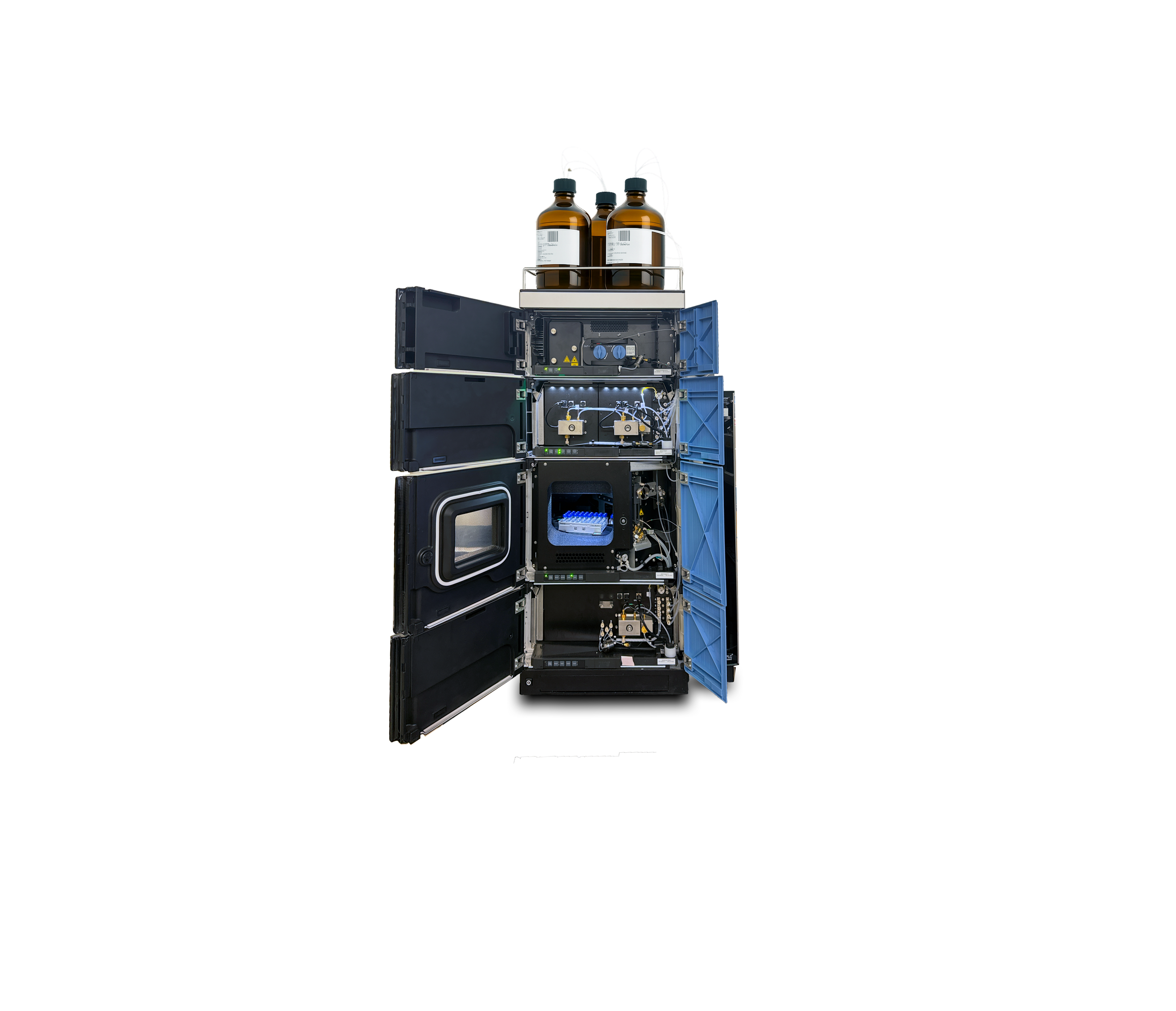

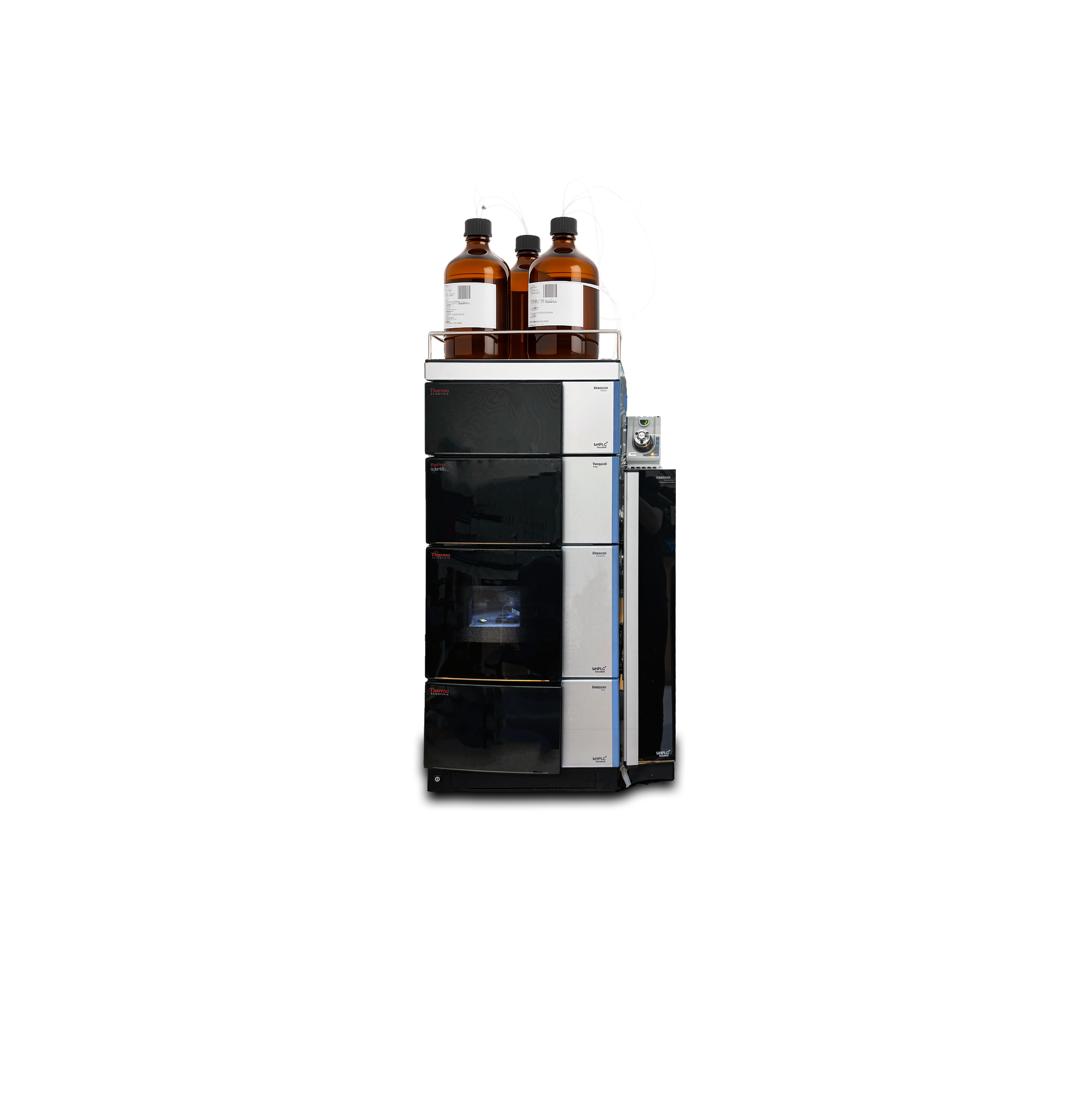

Thermo Vanquish HPLC System
Core HPLC Components:

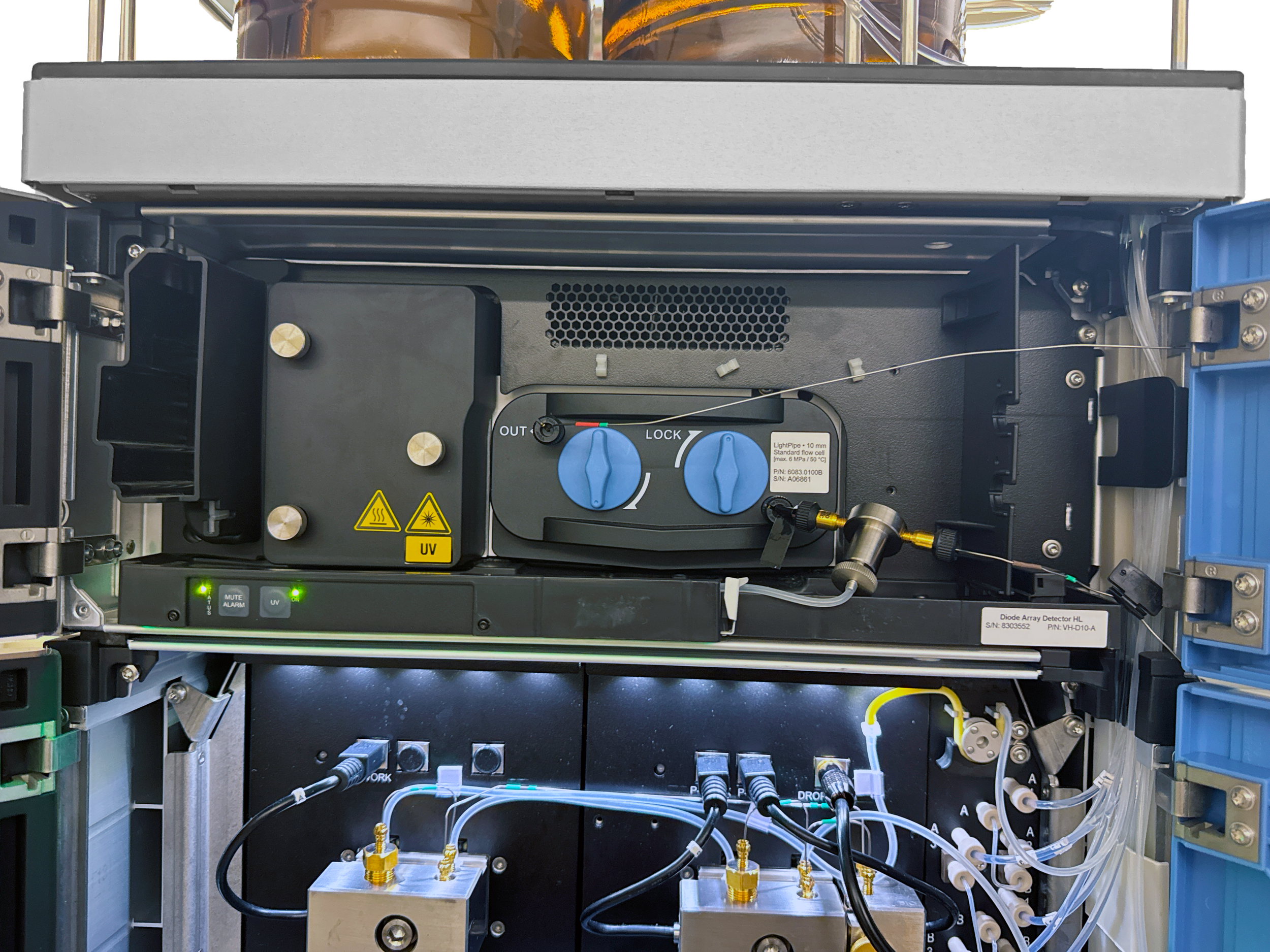

VH-D10-A: Vanquish Diode Array Detector

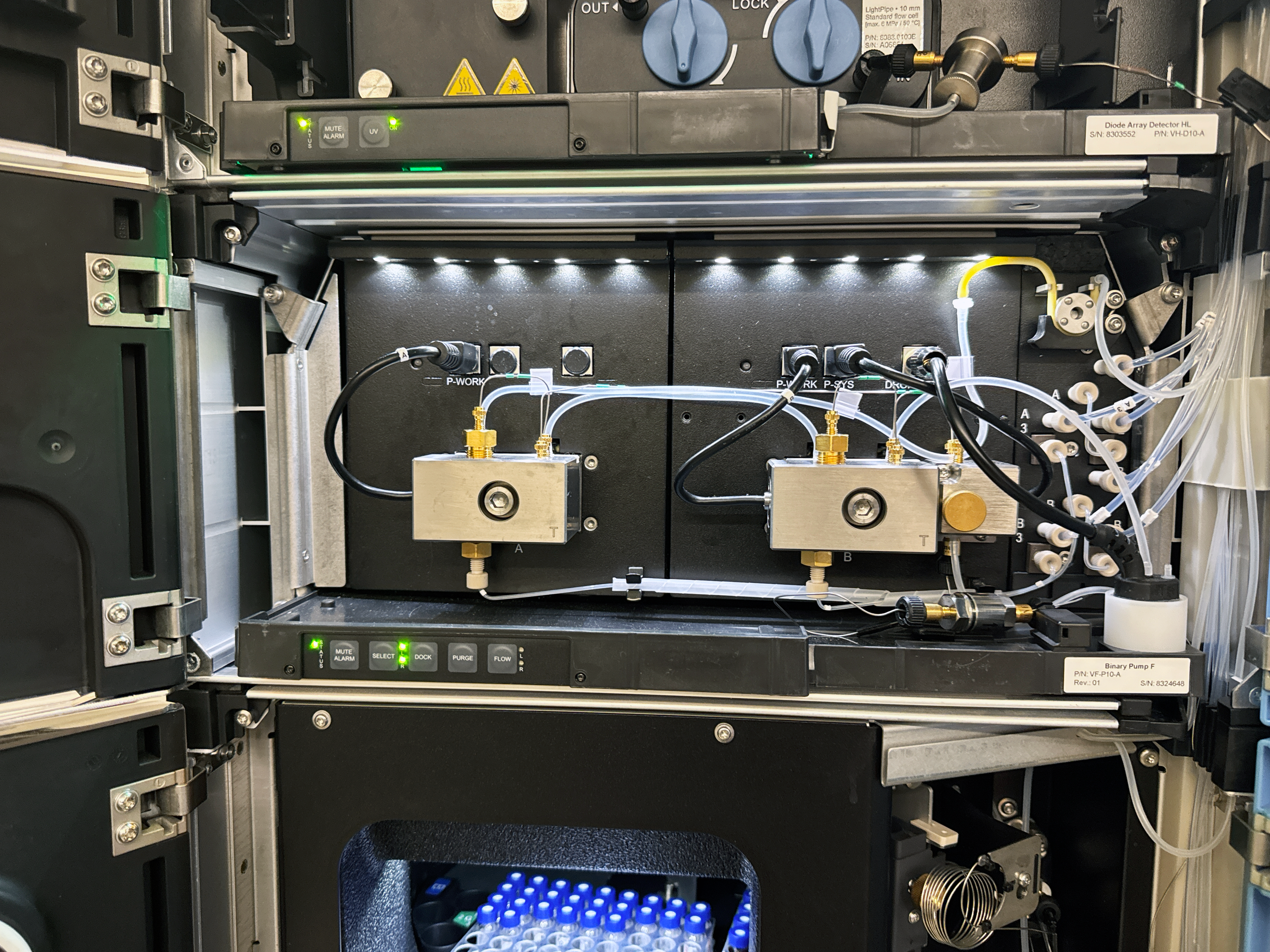

VF-P20A: Vanquish Binary Pump A (High Pressure)
VF-A10-A: Vanquish Autosampler
VF-P10-A: Vanquish Quaternary Pump A
Advanced Features & Accessories:
Sampling Valve Assembly
Column Heater Compartment with precise temperature control
Preheater Module for optimal mobile phase conditioning
High Sensitivity 10cm Flow Cell for enhanced detection
Complete Capillary Set (all necessary tubing and connections)
Full Accessory Kit including:
Thermo Exploris 240 Orbitrap Mass Spectrometer
Main Instrument:
Thermo Exploris 240 Orbitrap Mass Spectrometer
High-Field Orbitrap Mass Analyzer
Advanced Quadrupole Technology (AQT)
Ion-Routing Multipole (IRM)
Ion Sources & Probes:
Spare Parts & Accessories:
System Integration & Performance
Seamless LC-MS Integration:
Fully integrated control software
Optimized flow rates for MS detection (1–1,000 µL/min)
Synchronized method development and data acquisition
Pre-configured LC-MS methods and templates
HPLC Performance Specifications:
Flow Rate Range: 0.001–5.0 mL/min
Pressure Range: Up to 1,500 bar (VF-P20A)
Injection Volume: 0.1–100 μL (standard)
Column Compartment: 4°C to 80°C
Detector Wavelength: 190–800 nm (VH-D10-A)
Gradient Formation: Quaternary low-pressure mixing
MS Performance Specifications:
Mass Range: m/z 40–6,000 (standard), up to m/z 8,000 with BioPharma option
Resolution: Up to 240,000 at m/z 200
Scan Rate: Up to 30 Hz at resolution setting 11,250
Mass Accuracy:
External calibration: <3 ppm RMS drift over 24 hours
Internal lock mass: <1 ppm RMS drift over 24 hours
EASY-IC: <1 ppm RMS drift for at least 5 days
Detection Limit:
Full Scan: <3.0 fg reserpine on column
tMS2: <3.0 fg reserpine on column
tSIM: <1.5 fg reserpine on column
Complete Turnkey Package Includes
Support Systems:
Software & Licenses:
Vanquish Instrument Control Software
Orbitrap Exploris Instrument Control Software
Xcalibur Software Suite
ChromaLINK for integrated LC-MS control
Method Editor with LC-MS Templates
All Necessary Licenses
Physical Specifications:
HPLC Dimensions: Modular system, stackable design
MS Dimensions: 534 × 763 × 703 mm (21 × 30 × 27.7 in)
Combined Weight: Approximately 200 kg (440 lb) without accessories
Power Requirements: 2×208–240 Vac single phase, 15 A, 50/60 Hz
Customer Requirements
System Condition
Professional Service Complete - Both the Thermo Vanquish HPLC and Exploris 240 Orbitrap have been completely cleaned, inspected, and professionally serviced. Yearly preventative maintenance has been completed on both instruments, and the integrated system has been validated and certified by ScientiFIX's expert technicians to meet OEM specifications.
Both instruments are in excellent condition with only occasional light cosmetic wear that does not affect performance.
Mechanical & Electronic Condition: Excellent
All HPLC pumps, valves, and detectors inspected and certified
MS mechanical components inspected and certified
Electronic systems fully validated on both instruments
Vacuum system performance verified
Ion source optimized and properly functioning
LC-MS integration validated and optimized
Software installation and licensing verified
Performance Validation:
HPLC pressure, flow, and gradient accuracy verified
MS mass accuracy verified to meet OEM specifications
MS resolution performance confirmed
LC-MS system integration and data quality validated
Key Benefits of Complete System
Turnkey Solution: Complete LC-MS system ready for immediate use
Proven Integration: Thermo instruments designed to work seamlessly together
Comprehensive Support: Single-source service and support for entire system
Method Development: Pre-configured LC-MS methods for faster startup
Premium Performance: Industry-leading HPLC separation with high-resolution MS detection
Reliability: Extensively tested and validated system integration
Contact Information
ScientiFIX LLC - Connecticut's Leading Independent Scientific Equipment Service Provider
Complete Thermo Vanquish HPLC + Exploris 240 Orbitrap LC-MS System
Condition: Excellent - Professional Service Complete
Status: Ready to Operate - Complete Turnkey LC-MS System
Seller: ScientiFIX LLC - Connecticut's Leading Independent Scientific Equipment Service Provider
Description
This fully serviced and integrated Thermo Vanquish HPLC + Exploris 240 Orbitrap LC-MS system is ready for immediate use in your laboratory. Our expert technicians have completely cleaned, inspected, and validated both instruments to meet OEM specifications. Simply connect your nitrogen source and power - you have a complete, validated LC-MS solution ready for high-resolution mass spectrometry analysis!
The system combines the robust performance of the Thermo Vanquish HPLC with the cutting-edge Exploris 240 Orbitrap mass spectrometer, delivering exceptional performance for both small and large molecule analysis with seamless integration and proven reliability.
Complete LC-MS System Includes
Thermo Vanquish HPLC System
Core HPLC Components:
VH-D10-A: Vanquish Diode Array Detector
VF-P20A: Vanquish Binary Pump A (High Pressure)
VF-A10-A: Vanquish Autosampler
VF-P10-A: Vanquish Quaternary Pump A
Advanced Features & Accessories:
Sampling Valve Assembly
Column Heater Compartment with precise temperature control
Preheater Module for optimal mobile phase conditioning
High Sensitivity 10cm Flow Cell for enhanced detection
Complete Capillary Set (all necessary tubing and connections)
Full Accessory Kit including:
Thermo Exploris 240 Orbitrap Mass Spectrometer
Main Instrument:
Thermo Exploris 240 Orbitrap Mass Spectrometer
High-Field Orbitrap Mass Analyzer
Advanced Quadrupole Technology (AQT)
Ion-Routing Multipole (IRM)
Ion Sources & Probes:
Spare Parts & Accessories:
System Integration & Performance
Seamless LC-MS Integration:
Fully integrated control software
Optimized flow rates for MS detection (1–1,000 µL/min)
Synchronized method development and data acquisition
Pre-configured LC-MS methods and templates
HPLC Performance Specifications:
Flow Rate Range: 0.001–5.0 mL/min
Pressure Range: Up to 1,500 bar (VF-P20A)
Injection Volume: 0.1–100 μL (standard)
Column Compartment: 4°C to 80°C
Detector Wavelength: 190–800 nm (VH-D10-A)
Gradient Formation: Quaternary low-pressure mixing
MS Performance Specifications:
Mass Range: m/z 40–6,000 (standard), up to m/z 8,000 with BioPharma option
Resolution: Up to 240,000 at m/z 200
Scan Rate: Up to 30 Hz at resolution setting 11,250
Mass Accuracy:
External calibration: <3 ppm RMS drift over 24 hours
Internal lock mass: <1 ppm RMS drift over 24 hours
EASY-IC: <1 ppm RMS drift for at least 5 days
Detection Limit:
Full Scan: <3.0 fg reserpine on column
tMS2: <3.0 fg reserpine on column
tSIM: <1.5 fg reserpine on column
Complete Turnkey Package Includes
Support Systems:
Software & Licenses:
Vanquish Instrument Control Software
Orbitrap Exploris Instrument Control Software
Xcalibur Software Suite
ChromaLINK for integrated LC-MS control
Method Editor with LC-MS Templates
All Necessary Licenses
Physical Specifications:
HPLC Dimensions: Modular system, stackable design
MS Dimensions: 534 × 763 × 703 mm (21 × 30 × 27.7 in)
Combined Weight: Approximately 200 kg (440 lb) without accessories
Power Requirements: 2×208–240 Vac single phase, 15 A, 50/60 Hz
Customer Requirements
System Condition
Professional Service Complete - Both the Thermo Vanquish HPLC and Exploris 240 Orbitrap have been completely cleaned, inspected, and professionally serviced. Yearly preventative maintenance has been completed on both instruments, and the integrated system has been validated and certified by ScientiFIX's expert technicians to meet OEM specifications.
Both instruments are in excellent condition with only occasional light cosmetic wear that does not affect performance.
Mechanical & Electronic Condition: Excellent
All HPLC pumps, valves, and detectors inspected and certified
MS mechanical components inspected and certified
Electronic systems fully validated on both instruments
Vacuum system performance verified
Ion source optimized and properly functioning
LC-MS integration validated and optimized
Software installation and licensing verified
Performance Validation:
HPLC pressure, flow, and gradient accuracy verified
MS mass accuracy verified to meet OEM specifications
MS resolution performance confirmed
LC-MS system integration and data quality validated
Key Benefits of Complete System
Turnkey Solution: Complete LC-MS system ready for immediate use
Proven Integration: Thermo instruments designed to work seamlessly together
Comprehensive Support: Single-source service and support for entire system
Method Development: Pre-configured LC-MS methods for faster startup
Premium Performance: Industry-leading HPLC separation with high-resolution MS detection
Reliability: Extensively tested and validated system integration
Contact Information
ScientiFIX LLC - Connecticut's Leading Independent Scientific Equipment Service Provider
